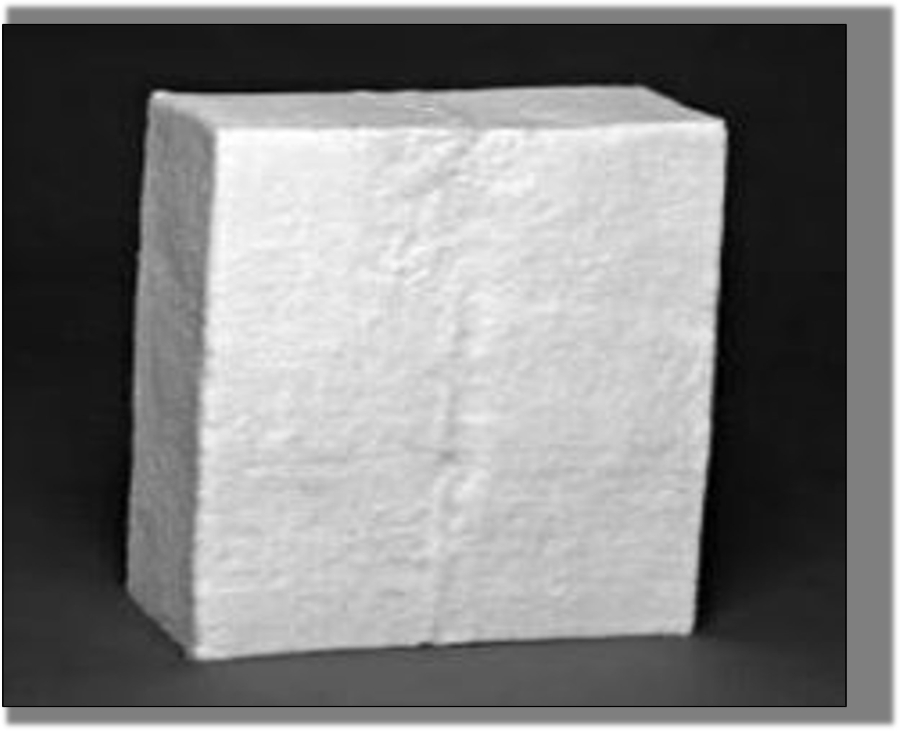

Stack-Compressed Ceramic Module
Overview
The Stack-Compressed Module, in the form of bonding and stacked ceramic fiber blanket, and binding it by strong compression, has excellent versatility, allowing various construction methods and product specifications.
Since the finished lining surface is flat, if surface strength is required, it is possible to protect the surface against scales by applying a protective ceramic coating agent.
Classification
• 1260 S-C Module
• 1430 S-C Module
• 1500 S-C Module
• 1600 S-C Module
| 1260 S-C Module | 1430 S-C Module | 1500 S-C Module | 1600 S-C Module |
Temperature (℃) | 1260 | 1430 | 1500 | 1600 |
Bulk Density (kg/m3) | 160, 192, 240 | |||

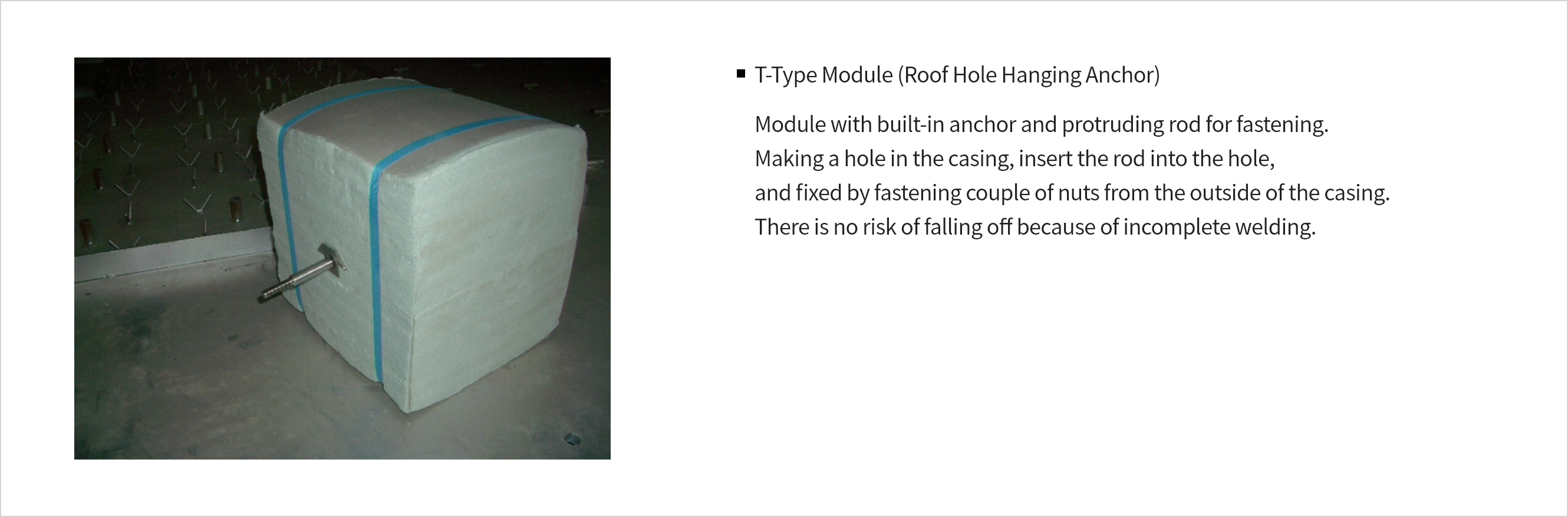

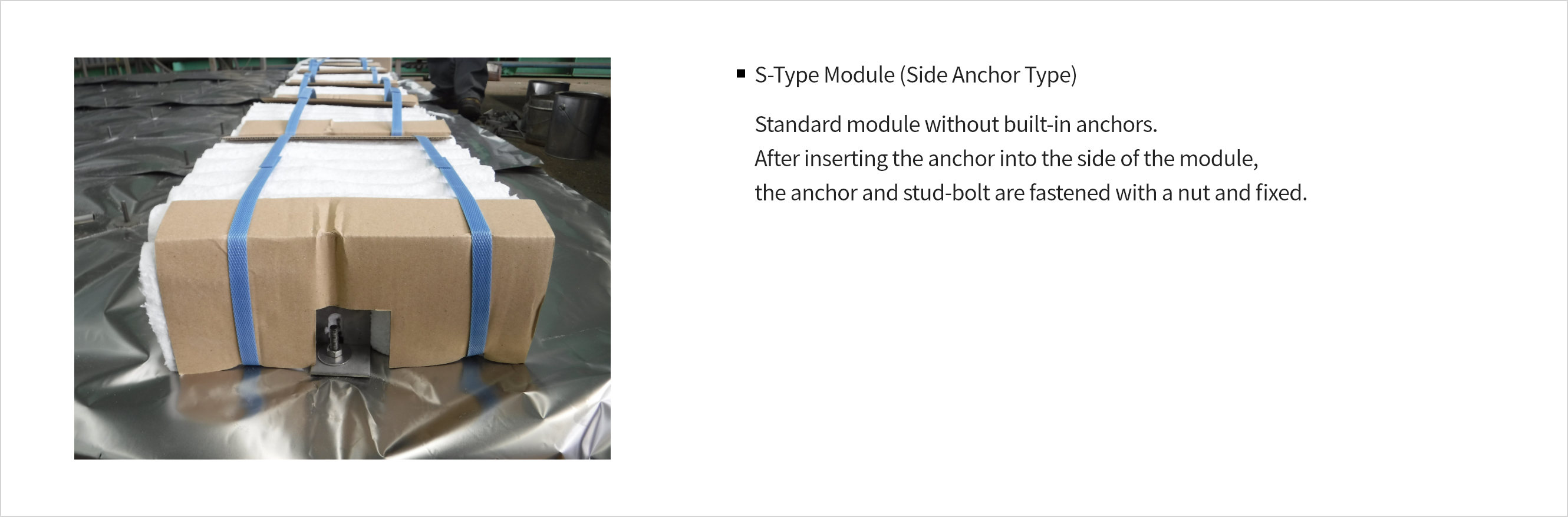

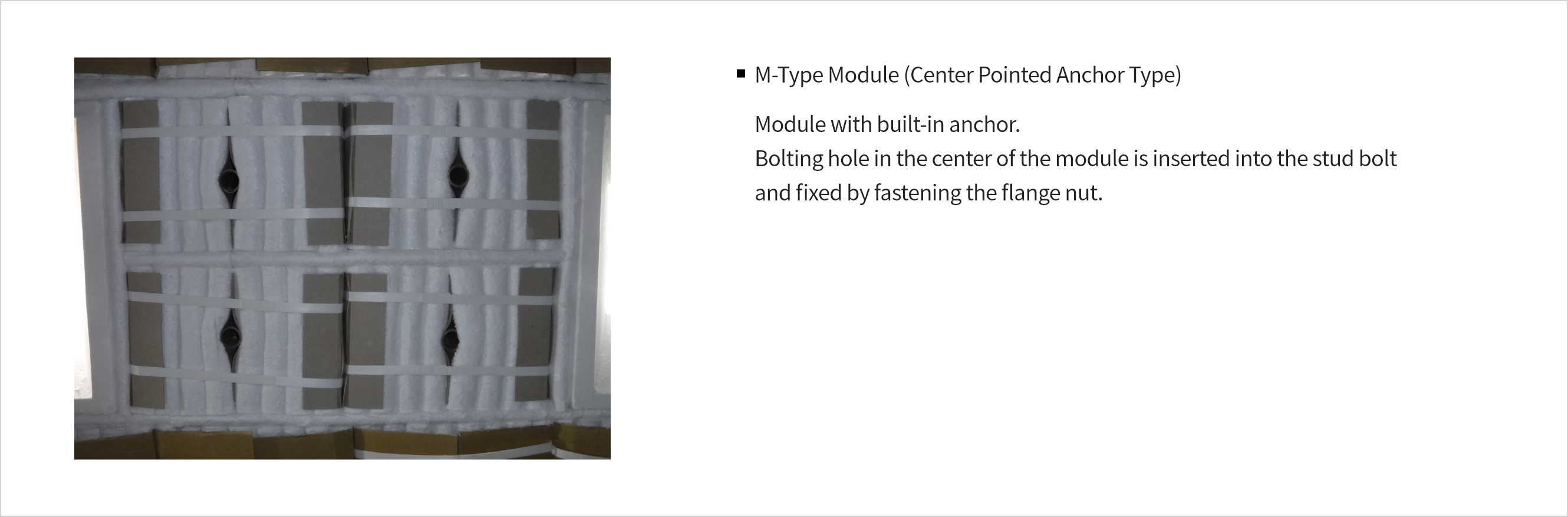

Application Type | S-Type, M-Type, T-Type | |||
Applicable Type

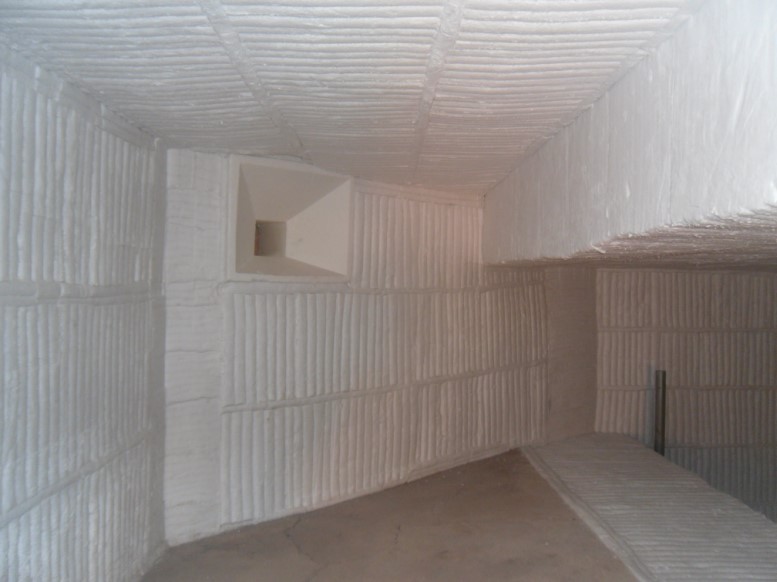

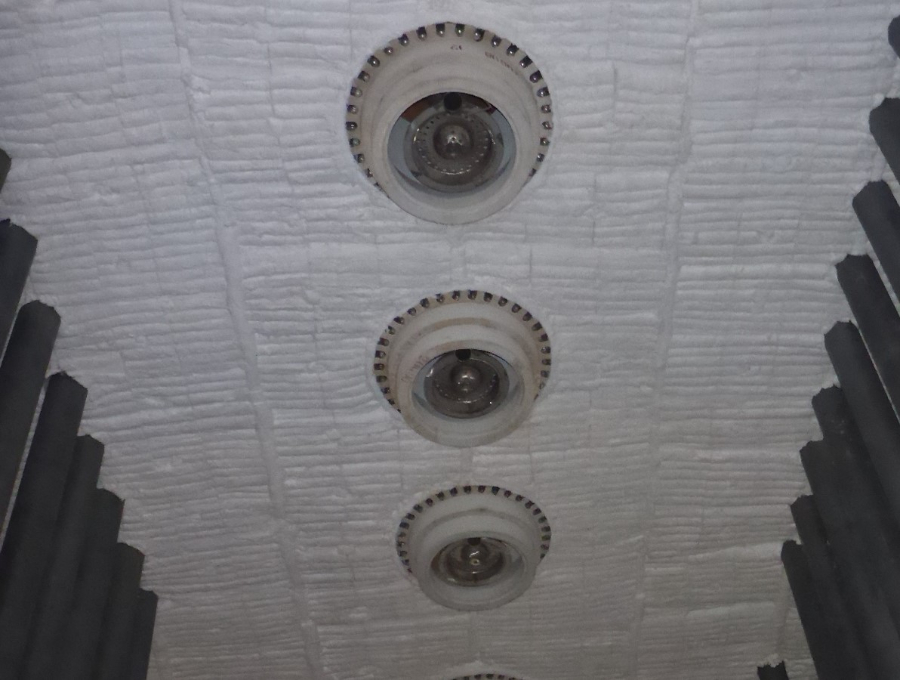

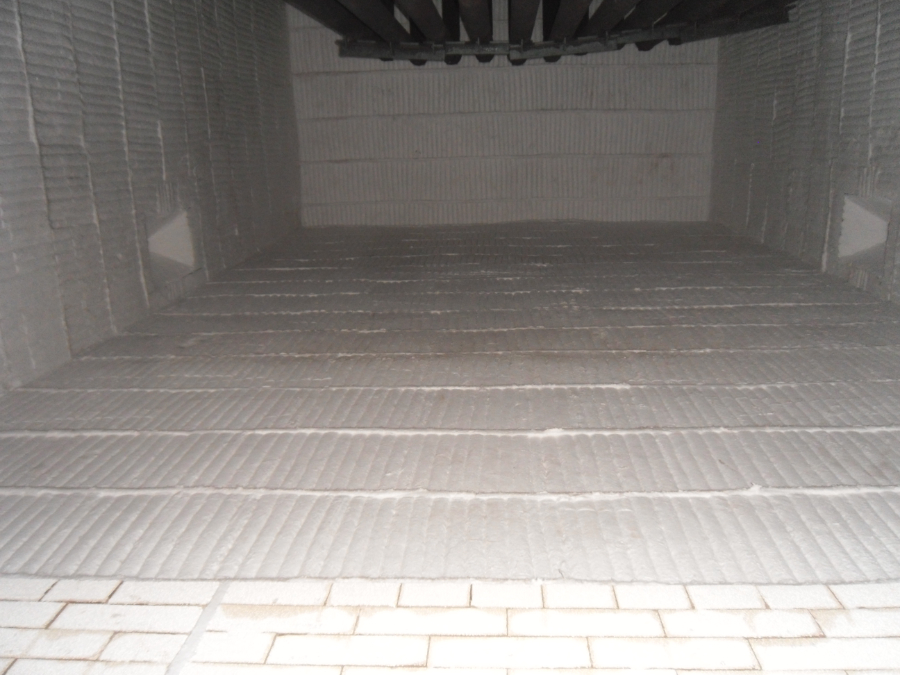

Application
Related
-

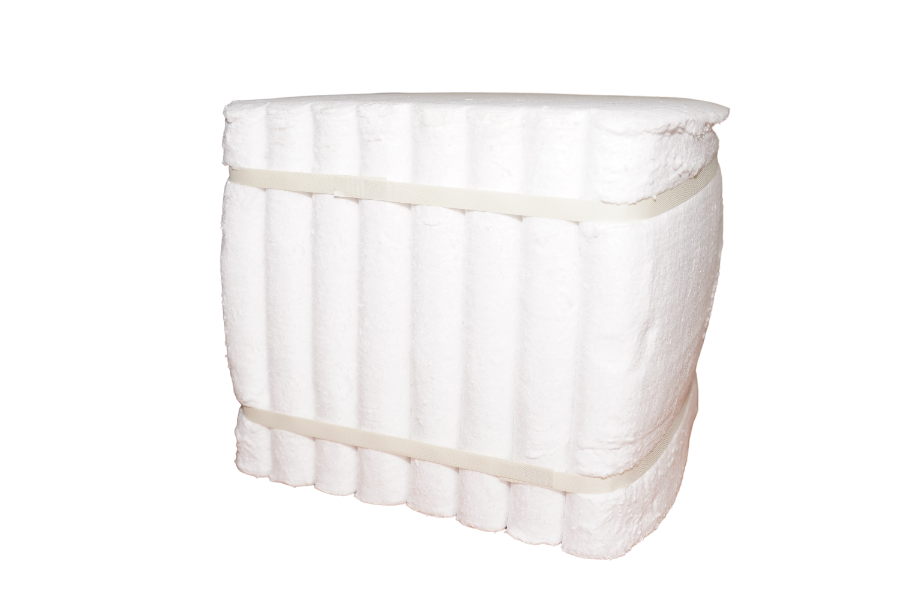

FOLD-COMPRESSED MODULE
-
MONOLITHIC MODULE
